Aluminum Alloy Solar PV Mounting Brackets Installation Manual

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSurface Treatment | Anodized | Installation Type | Ground Mounted |
---|---|---|---|
Material | Aluminum Alloy | Installation Manual | Included |
Color | Silver Or Customized | Foundation Type | Concrete Base Or Ground Screw |
Module Compatibility | Fits Most Standard Size Solar Panels | Feature | Easy And Fast Installation |
Highlight | Aluminum Alloy Solar PV Mounting Brackets,Solar PV Mounting Brackets Manual,PV Mounting Brackets Installation |

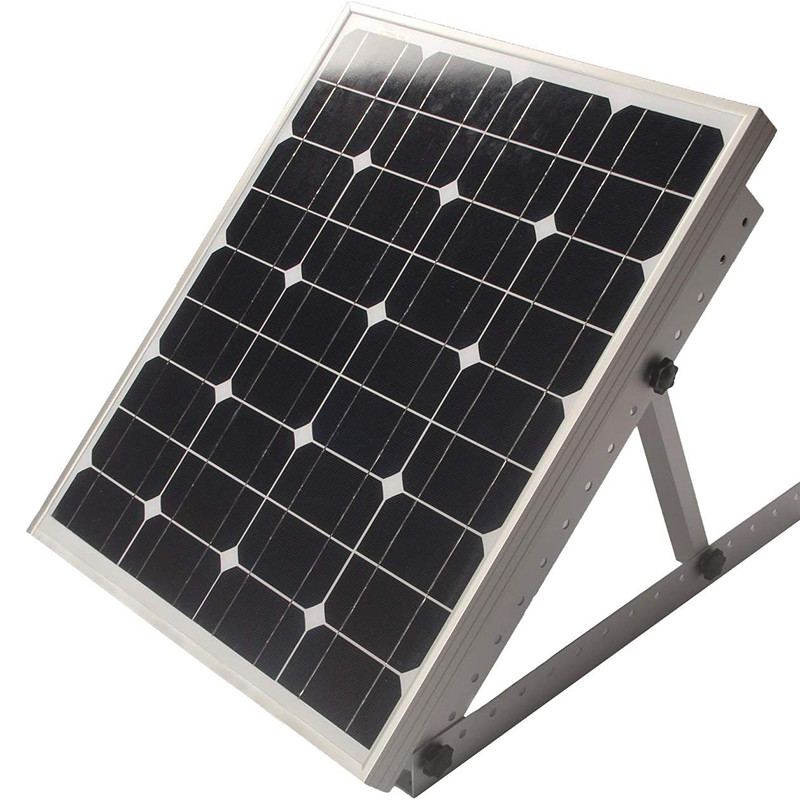

High-performance aluminum alloy solar mounting brackets designed for secure photovoltaic module installation with 0-60 degree tilt adjustment. These ground-mounted brackets feature corrosion-resistant anodized finish and compatibility with most standard solar panels.
- Premium aluminum alloy construction for durability and lightweight performance
- Anodized surface treatment for superior corrosion resistance
- Adjustable tilt angle (0-60°) for optimal solar exposure
- Compatible with concrete base or ground screw foundations
- Includes comprehensive installation manual
- Withstands wind loads up to 60M/s and snow loads ≤1.4KN/m²
- Available in silver or customized colors
Parameter | Specification |
---|---|
Material | Aluminum Alloy |
Surface Treatment | Anodized |
Installation Type | Ground Mounted |
Wind Load Capacity | 60M/s |
Tilt Angle Range | 0-60 Degrees |
Module Compatibility | Fits Most Standard Size Solar Panels |


These ISO9001 certified mounting brackets provide a secure foundation for solar panels in residential and commercial applications. The ground-mounted design ensures stability across various outdoor environments, while the aluminum alloy construction offers weather-resistant durability.
Each bracket is protected with foam padding and shipped in heavy-duty corrugated boxes. Bulk orders are palletized and shrink-wrapped for secure transport. All necessary hardware and detailed installation manuals are included.
